Texture Editing How To

Postby prospero » Wed Sep 23, 2009 2:33 pm

Basic Skin Editing.[8D]

OK. First you need the Blade Tools kit. There is no complicated installation procedure with these. Just copy them to a convienient place on your HD. I have them in a folder 'Blade' in my documents.
Inside the Blade Tools folder there is a Compilers folder. Inside this
is a folder 'Textures Compiler'. There are lots of files inside. Don't edit them. For ease of use, create Desktop shortcuts to the file BAB.EXE and also the Texture Compiler folder itself. The BAB program converts files in the format .BMP into a file with the format .MMP. The MMP files are what the Blade engine reads.

To edit existing Blade skins, you first need to extract the BMPs from the .MMP file. The BAB tool will not do this, but it can be used as a veiwer. Open the BAB by clicking the desktop shortcut. Two windows will appear. You don't need the Console window yet, so close it. The BAB text is in Spanish, but don't let that scare you. Click 'Archivo' (File). Then 'Abrir' (Open). Navigate to the folder where Blade is installed. The MMPs are either in 3DObjs or 3DChars folder. All the character skins are in 3DChars folder. Open the file Kgt.mmp. All the skins for the Knight model are in here. Click KGTNF in the Nombre (Name) column. The image should appear in the lower right field.

*Word of warning here. The blade tool software was made 'in house' by RAS and has some some lingering bugs. These are not a problem as long as you know where they are. There is one here. Don't use the wheel on the mouse to scroll down in BAB unless you have a picture showing. If you do, the BAB will crash.

Most of the RAS skin mapping follows this convention:

The characters have a front and rear bitmap. In the case of the Player characters...

N = No armour
L = Light Armour
M = Medium Armour
F = Full Armour

There is a sort of system, but it's subject to a few variations, but it's not too difficult to figure it out.

KGTNF is Knight - No Armour - Front
KGTNR is Knight - No Armour - Rear

KGTLF is Knight - Light Armour - Front
KGTLR is Knight - Light Armour - Rear


Just to make things confusing the rest of the armour skins are not named like this. But ignore them for now.

All skin bitmaps have a coresponding Wounded skin. These are all named
the same as the unwounded version but with _W on the end. You have to have these even if the wounded and unwounded bitmaps are the same.


You can't save the bitmaps diectly from BAB. You have to grab them. Most graphics programs have a screen grab facility. I use PaintshopPro. However you do it, the bitmaps need to be exactly 256x256 pixels.
If you are replacing a RAS mmp file, you need to grab all the bitmaps in the MMP file. Save them to a new folder in the Textures Compiler folder with the <b>Exact</b>name of the MMP file you extracted them from (without the file extension). In this case - Kgt

Now the hard part.Use your fav graphics prog to alter the bitmaps. It's a good idea to save versions in seperate folders within the Kgt folder. The RAS bitmaps are quite small and it is tricky to work on them. And it can be mind=boggling trying to work out which part belongs there. I won't dwell on this as most people will be better at it than I am.
Only work on the unwounded skins. When you have got them to a point where you think they are finished, save copies of the unwounded with _W on the end to replace the original wounded bitmaps and add a few wounds.


When you have doodled about with the bitmaps and get to the point where you want to check how they look in the game, you have to recompile the bitmaps into format MMP.

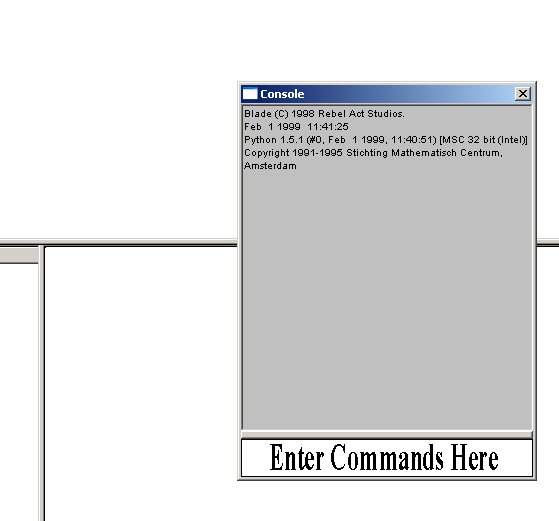

Open The BAB again. This time you need the Console. To enter commands in the Console you have to do a sneaky trick to expose the input field. Hover the mouse cursor near the bottom of the Consloe window until it turns to a up-and-dowm arrows symbol. Click and drag upwards and you will peel back the bottom to expose a white area. You can type commands here. The grey field on top is purely for output messages.


User avatar
prospero
Ancient Dragon
Posts: 1724
Joined: Wed Nov 21, 2001 1:42 am
Location: United Kingdom

Postby prospero » Wed Sep 23, 2009 3:16 pm

Next step......

Masklin made a nice little tool to speed up the job of compiling.

Below is the code.

(Note I have altered it slightly. The original command 'process' I have replaced with 'go'. )This is purely because it's quicker to type and I'm very lazy and can't spell.[:I])



Code: Select all

############################################################################## ## genmmp v 1.0 - by Masklin - May-2001 ############################################################################## import BaBx import sys BODHome = "C:/Codemasters/Severance/" #### Edit this to your personal folder hierachy. sys.path.append(BODHome+"Lib/PythonLib") sys.path.append(BODHome+"Lib/PythonLib/Idle") sys.path.append(BODHome+"Lib/PythonLib/lib-tk") sys.path.append(BODHome+"Lib/PythonLib/DLLs") import os import re Bitmaps = [] MMPName = "" def go (dirname): global Bitmaps global MMPName files = os.listdir(dirname) files.sort() for file in files: basename = os.path.basename (file) name,ext = os.path.splitext (basename) if ext == '.bmp': print "genmmp: Found ",basename name=re.split ("__", name, 1)[0] Bitmaps.append(BaBx.BitmapData(name,basename,1)) if len (Bitmaps): print "genmmp: processing bitmaps..." MMPName = os.path.basename (dirname) os.chdir (MMPName) BaBx.ProcessBitmaps(Bitmaps) else: print "genmmp: bmp files not found at ", dirname def save (): global Bitmaps global MMPName if len (Bitmaps): print "genmmp: generating "+MMPName+".mmp file..." BaBx.SaveFile(MMPName+".mmp") print "genmmp: generating "+MMPName+".dat file..." file = open (MMPName+".dat", 'wt') file.write ('1\n') for bm in Bitmaps: file.write ('%s\n%s\n'%(bm.BMPName, bm.InternalName)) file.close() else: print "genmmp: bmp files not found at ", dirname ####################################################################
Copy this code and paste into a new file. Name it genmmp.py (exactly) and save it to the Texture Compiler folder.(select 'all files' option when saving). The only thing you may need to do is edit the BODHome variable to suit your own PC folder structure.

OK. Open BAB and peel up the input field in the Console window. Click in the input field and type:

import genmmp

Press Enter

then type:

genmmp.go("Kgt")

Press Enter.

If all is well, the bitmaps will load into the top of the BAB window.
When they have all loaded, type:

genmmp.save()

Press Enter.

Nothing will appear to happen, but a 1 will appear in the grey output field of the Console if it has worked. Look in the Textures Compiler/Kgt folder. There should be a Kgt.mmp file. (There will also be a .DAT file. Ignore it). To get the game to use this modified mmp file, you need to replace the original one in the 3DChars folder.
*** It's agood idea to save a backup copy of the original.

Once you have your modded mmp in the 3DChars folder, you can start the game and check out your changes.[:D]



btw. I should point out that there are various other tools that Blade fans have made to aid skinning. I don't mention them here as the I just wanted to outline the basic principles.

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Thu Sep 24, 2009 10:43 am

wow [:0]

I hope I can figurate out [:o)]

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Thu Sep 24, 2009 1:06 pm

it will hard [}:)]

I am good only in this [:)]


is it to grom to ask someone to get the skin bmp files, I edit them then someone who is good in program language make the updating

team work [8D]

I realy dont have brain for those u write above [:p]

User avatar
prospero
Ancient Dragon
Posts: 1724
Joined: Wed Nov 21, 2001 1:42 am
Location: United Kingdom

Postby prospero » Thu Sep 24, 2009 10:56 pm

Go on. Have a go.[:)] If I can do it I'm sure you can.

Nice artwork btw. [:D]

User avatar
Tomash
Dragon
Posts: 246
Joined: Sat Oct 25, 2008 11:23 am
Location: Russia
Contact:

Postby Tomash » Fri Sep 25, 2009 8:16 am

To avoid the difficulties caused by unfriendly interface of original textures compiler, check this software out:
http://sgi.bigtruck-canada.ca/

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Fri Sep 25, 2009 9:00 am

thx Tomash for the help [:)]

I make this way

for thx here are some artwork [:D]



Ianna Keeper
Dragon
Posts: 145
Joined: Fri Sep 30, 2005 11:10 pm
Location: Turkey

Postby Ianna Keeper » Sat Sep 26, 2009 1:32 pm

nice work[:)]. reminds me artwork in credits.

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Mon Sep 28, 2009 9:47 am

thx Ianna Keeper

yeee I tried to make it like in credits, those illustrations are awesome for me
Jose Luis Vaello Bertol is a great artist in fantasy

I try to make more art from the game

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Wed Sep 30, 2009 8:01 am

Ok its work Prospero [8D]
it isnt so difficult like I thougth at first [:I]

soon I will get some skins, peoples can use them in the main game or in modding, I will make good and evil charachters to

thx that u show me this way

User avatar
prospero
Ancient Dragon
Posts: 1724
Joined: Wed Nov 21, 2001 1:42 am
Location: United Kingdom

Postby prospero » Wed Sep 30, 2009 11:27 am

That's good to hear.[:D]

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Thu Oct 01, 2009 2:02 pm

I make some skins, but there are some part of the face I cant figured out where is it on the bmp file

here a look what kind of manipulations I plan, of course I will make more bigger changes, this is just teh beginning


lizard knight, masked minotaur, and another Dal

u can see on the minotaur that on face under the mask, its not perfect
here I show which part I mean


btw. the skins will get the original wounds, it will look better

User avatar
prospero
Ancient Dragon
Posts: 1724
Joined: Wed Nov 21, 2001 1:42 am
Location: United Kingdom

Postby prospero » Thu Oct 01, 2009 3:12 pm

That's not bad charly.[:)]

The bmps take a bit of figuring out. A lot of it is trial and error.


The Neverwinter Nights derived models are easier to skin. Each body part has a different bmp. Only problem is the head/body/pelvis are mapped symetrically, so one side is a mirror image of the other. I have got round this on some models by splitting the mesh and applying a different bmp to either side. Gets a bit complicated though..[:p]

btw. RAS models will not wear NWN meshes. They come out backwards.

Ianna Keeper
Dragon
Posts: 145
Joined: Fri Sep 30, 2005 11:10 pm
Location: Turkey

Postby Ianna Keeper » Fri Oct 02, 2009 1:06 pm

loved the dal gurak, it is kinda frightening[:)]

charly
Dragon
Posts: 152
Joined: Wed Oct 22, 2008 10:52 am
Location: Hungary

Postby charly » Mon Oct 05, 2009 8:19 am

thx IK [:D]

there will be more Dals, and I work more on the skins, not just color and face changing, that would be not a big deal
I work on the armours, like here the new traitor knight skin



and maybe I can make the weapens and schild of the dals to fit to the new skins
